PORTRAIT Q-AIR SET
Description
PORTRAIT Q-Air is a battery-powered (or mains-powered) PAR, specifically designed for rental applications. You can easily control it by choosing among IR remote control, wired DMX-512 connection, Wireless DMX (by using the PRT0889, 2.4GHz Wireless DMX Transceivers), and Wi-Fi Control by using LED LAMP free APP for iOS® and Android® de... Read more
PORTRAIT Q-Air is a battery-powered (or mains-powered) PAR, specifically designed for rental applications. You can easily control it by choosing among IR remote control, wired DMX-512 connection, Wireless DMX (by using the PRT0889, 2.4GHz Wireless DMX Transceivers), and Wi-Fi Control by using LED LAMP free APP for iOS® and Android® devices.
This fixture is part of as set composed by 8pcs PARs housed in a flight case with charging function. You can easily recharge by placing them into the flight case, connecting to power with the eight IEC connectors inside the case, and finally connecting the flight case external power connector to a mains outlet.

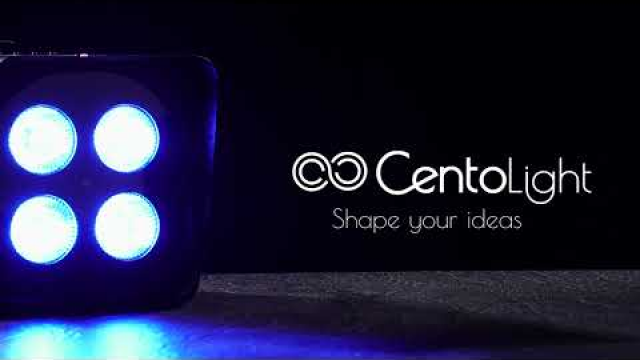

The lighting emitting system consists of 4pcs 12W RGBW 4in1 high-brightness LEDs with a life-span of approximately 50,000 hours. Each LED features a high-quality lens with 15° beam angle and 29° field angle, making this PAR ideal for all applications ranging from wash to beam use.
The PORTRAIT Q-Air has a highly compact housing, and can be fit inside 300x300mm truss to create wonderful wash effect inside the truss structure. The fixture can sit on even and solid floor and work as an up-light. It also has a built-in adjustable tilt support. By pushing the tile support, the fixture tile can move up to 25° to wash walls or facades.
The high-efficiency lithium battery guarantees a complete charge from zero within about 5 hours, and a working duration ranging from 5 hours (full color mode) to 12 hours (single color mode). The infrared remote control allows remote control of the main functions without the use of DMX.
WIRELESS TRANSMITTER
please refer to code PRT0889
Media
Highlights
Wireless DMX, control in maximum freedom
If for aesthetic or distance issues the normal DMX cable connection is not for you, no problem. Portrait Q-Air fixtures can be controlled up to 300m without cables thanks to 2.5GHz Wireless DMX, which operates in the license-free ISM band from 2.400 to 2.525 GHz and adopts the highly efficient GFSK modulation system. This protocol provides 7 IDs, each with 512 DMX channels, and is a fast and safe solution even in rather complex projects.
But there is more. If your DMX controller and the rest of your other fixtures do not have the Wireless protocol, DMX, you can always pair it with PRT0889, a wireless transmitter/receiver compatible with all wireless systems on the 2.4GHz band. In this way your control unit can manage your sets completely wirelessly or hybrid, greatly reducing the number of DMX cables.
For WIRELESS TRANSMITTER please refer to PRT0889
Wi-Fi Control and Master/Slave Mode
There are so many cases where in shows or events there is a need to add lighting points on the fly in locations not always accessible by cables. The Portrait Q-Air was born to do just that; but sometimes it is not even necessary or possible to install a DMX control director. In these cases, Wi-Fi offers the ideal solution.
Simply turn on the Portrait Q-Air's Wi-Fi mode and it will operate as a small Wi-Fi router controllable by the free Led Lamp App for iOS® and Android® devices. Your mobile device becomes a true DMX controller, and you can control dimmers, colors, create presets and more.
Each fixture, when in Wireless mode, has its own identifier, just like with regular Wi-Fi Routers). The app allows you to choose which fixture you want to control; and if you want all your Portrait Q-Air fixtures to be controlled from one cabinet and all behave the same, you can always take advantage of the Master/Slave mode by connecting the Master to the Slaves via DMX cable or Wireless DMX via the Soundsation Aircom-126.
In short, with Portrait Q-Air, versatility is in your hands, and it offers flexible solutions to all your events and show-related lighting needs.
Product details
| 4x 12W RGBW 4in1 high-efficiency and long-life LEDs | |
| 15° Beam angle; 29° Field angle | |
| CRI ≥ 90 | |
| Flicker-Free Operation | |
| Wireless 2.4GHz DMX-512 control | |
| DMX-512 wired control | |
| Wi-Fi Control Mode | |
| IR remote control | |
| 0°-25° adjustable tilt support | |
| Foldable handle for easy transport | |
| OLED Color Display with intuitive interface | |
| Rechargeable Lithium-Ion Battery for up to 12-hour operation | |
| 8-Units Flight Case with Charging Function | |
| FOR WIRELESS TRANSMITTER please refer to code PRT0889 |
| Light sources | 4x12W RGBW 4-in-1 LEDs |
| Beam angle | 15° |
| Field angle | 29° |
| Led average life span | 50,000 hours |
| Control mode | DMX512, Master/Slave, Stand Alone, Wireless DMX, IR Remote Control, Wi-Fi control |
| DMX channel | 4/8 channel selectable |
| Control panel | LCD display |
| Power input | 100-240VAC 50/60Hz |
| Power consumption | Max. 45W |
| Fuse | F5A-250V |
| Power Input / Output Connector | IEC |
| Battery type | Rechargeable lithium-ion Battery Pack 14.8V - 5.2Ah LG18650-4S2P |
| Battery Pack Size | 65 x 75 x 35 mm |
| Charge time | About 5.0 hours |
| Battery life | 5 hours at full color from one full charge; 8 hours at running preset programs; 12 hours at running single color |
| IP rating | IP20 |
| Cooling | Natural cooling, silent operation |
| Housing Material | Rigid metal |
| Housing color | Black |
| Fixture Size (WxDxH) | 138 x 144 x 205mm – 5.43 x 5.67 x 8.07 in |
| Net weight | 3.6 kg – 7.94 lbs. |
| (Flight Case) Power input | 100-240VAC 50/60Hz |
| (Flight Case) Power consumption | Max. 400W |
| (Flight Case) Fuse | F10A-250V |
| (Flight Case) Power In/Out Connections | Powercon Input / Output |
| (Flight Case) Size (WxDxH) | 755 x 455 x 485 mm (29.72 x 17.91 x 19.09 inch) |
| Weight | 51 kg - 112.5 lbs. (including 8 Pars and accessories) |
| WIRELESS TRANSMITTER | please refer to code PRT0889 |
